Product introduction:

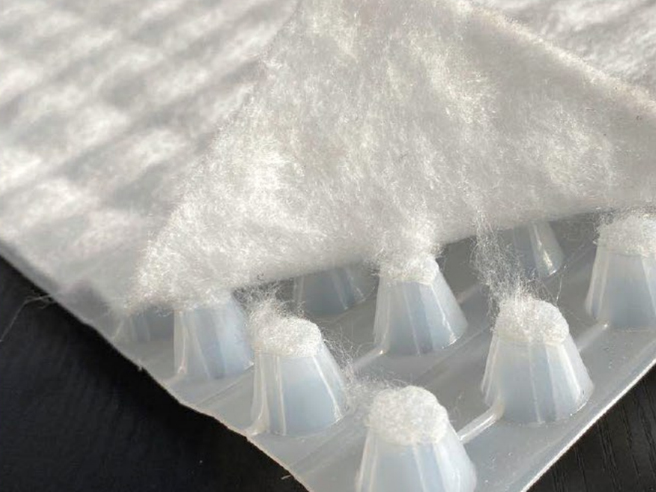

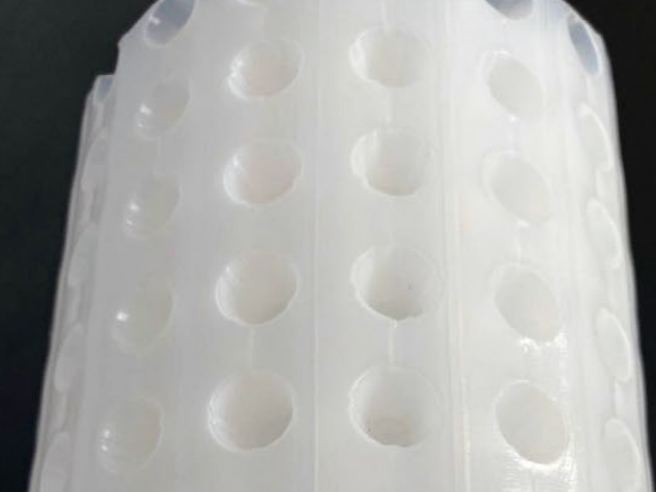

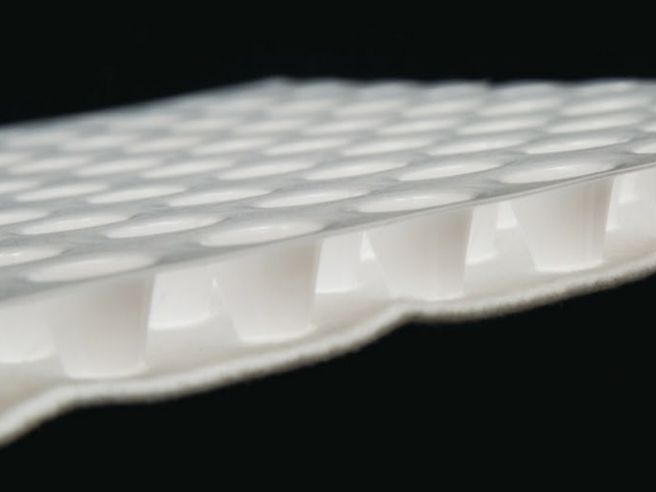

Plastic three-dimensional composite waterproof drainage board uses polymer resin as the main raw materiaand uses special technology to form protruding columnar and semi-stacked shells to fom a continuous film andshel, and compound a layer of non-woven geotextile. With a three-dimensional space and a certain supporstifiness, liquid and gas can flow and excrete in it.

Product specification :

The thickness of the plate is 0.8mm-2.0mm, the height of the convex is generally 8mm/ 15mm/20mm. thewidth of the product is 2m-3m, the material of the plate is HDPE / EVA, etc., the composite layer is non-wovengeotextile, and the length is according to the user requirements

Product features:

combination of anti-drainage and diversifed application funcions: sound insulation and vibralion isolation: resistanceto chemical corrosion and plant root puncture, simple installation, durable use.

Scope of application:

waterproofing systems for highways, railways, tunnels, underground waterproofing systems, roof gardens.greening and other waterproof and drainage projects.

Product implementation standard:

GB 18173.1-2012 Polvmer waterproof material Part / Waterproof sheetJC厂T 2112-2012 plastic protective drainage board
